Animation and Randomness

let clearEachFrame = true;

function draw() {
  if (clearEachFrame) {
    background(100);
  }

  for (let i = 0; i < 20; i++) {
    let x = map(i, 0, 19, 20, width - 20);
    let y = 100 + 20 * sin(i + millis() / 100);
    circle(x, y, 20);
  }
}

The sketches on this page are live and editable. Drag an underlined number left or right to change it, or focus it and press Up or Down (hold Shift for larger steps). The underlined values address the current example; the Explore more parameters disclosure below a sketch contains additional settings for that same sketch. The round-arrow button restores the original values, and each live sketch’s Copy button produces a complete sketch you can paste into the p5.js editor.

setup() runs once when the sketch starts; draw() then runs again and again, about sixty times per second. This sketch animates by making the vertical position a function of time: millis() returns the milliseconds since the sketch started, and dividing it slows the change to a visible pace.

What remains from the previous frame? Whatever the last draw() left on the canvas. The highlighted background(100) erases it at the start of each frame. Uncheck Clear each frame to see the trail the circles paint when nothing erases.

Try it: animate the size of the circles instead of their position. That is a structural change, not a number edit, so here is a complete sketch to copy and adapt.

function setup() {
  createCanvas(500, 200);
}

function draw() {
  background(100);

  for (let i = 0; i < 20; i++) {
    let x = map(i, 0, 19, 20, width - 20);
    let size = 10 + 10 * sin(i + millis() / 100);
    circle(x, 100, size);
  }
}

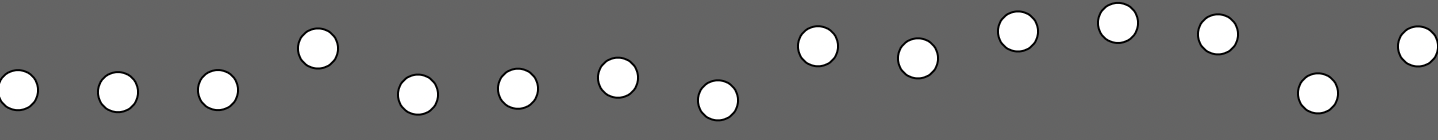

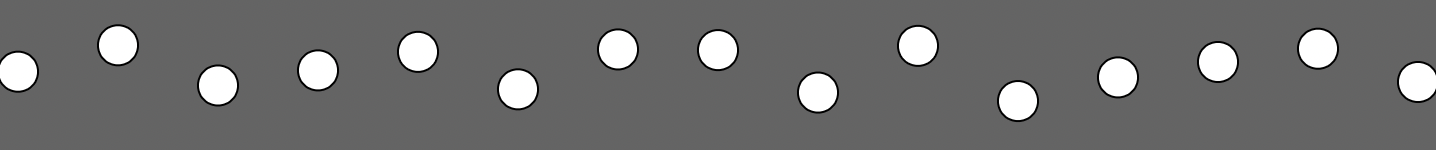

random() is another way to make a property differ: every call returns a new number. Whether that helps depends on when the sketch asks. The three views below start from the same twenty random values. Press Play or Step one frame, and watch which view changes.

function setup() {
  createCanvas(500, 200);
  randomSeed(7);
  background(100);

  for (let i = 0; i < 20; i++) {
    let x = map(i, 0, 19, 20, width - 20);
    let y = random(80, 120);
    circle(x, y, 20);
  }
}

function setup() {
  createCanvas(500, 200);
  randomSeed(7);
}

function draw() {
  background(100);

  for (let i = 0; i < 20; i++) {
    let x = map(i, 0, 19, 20, width - 20);
    let y = random(80, 120);
    circle(x, y, 20);
  }
}

let ys = new Array();

function setup() {
  createCanvas(500, 200);
  randomSeed(7);
  for (let i = 0; i < 20; i++) {
    ys[i] = random(80, 120);
  }
}

function draw() {
  background(100);

  for (let i = 0; i < 20; i++) {
    let x = map(i, 0, 19, 20, width - 20);
    circle(x, ys[i], 20);
  }
}

Only the middle view asks for new values. Draw once never asks again, because it stops redrawing. Remember positions asks once and keeps the answers, so every frame can reuse them. The first and third views look identical here; the difference matters as soon as the drawing changes. The pixels from Draw once stay on the canvas until something draws over them, but the coordinates that produced them were discarded. Retained values can be redrawn after clearing and combined with other animation, frame after frame.

An array can remember the vertical position of each circle. Declare ys outside the functions so that setup() and draw() share it. Fill it in setup(), which runs once; each call to draw() then reads the same stored positions.

let ys = new Array();

function setup() {
  createCanvas(windowWidth, windowHeight);
  for (let i = 0; i < 20; i++) {
    ys[i] = random(80, 120);
  }
}

function draw() {
  background(100);

  for (let i = 0; i < 20; i++) {
    let x = map(i, 0, 19, 20, width - 20);
    circle(x, ys[i], 20);
  }
}

This sketch still calls draw() every frame, but the drawing no longer flickers, because nothing in draw() asks for new values.

function draw() {
  background(100);

  let ys = new Array();

  for (let i = 0; i < 20; i++) {
    ys[i] = random(80, 120);
  }

  for (let i = 0; i < 20; i++) {
    let x = map(i, 0, 19, 20, width - 20);
    circle(x, ys[i], 20);
  }
}

Now combine the two sources: randomness sampled once in setup(), and time read in draw(). Each circle keeps its own stored height while its size pulses with millis().

function draw() {
  background(100);

  for (let i = 0; i < 20; i++) {
    let x = map(i, 0, 19, 20, width - 20);
    let size = 15 + 5 * sin(i + millis() / 100);
    circle(x, ys[i], size);
  }
}

The retained values make the circles different from one another; the time input makes them move. Declaring ys outside the functions is what lets setup() and draw() share it, but scope alone never changes a value. The sizes move because draw() recomputes them from millis() each frame; the next section moves the stored values themselves. A variable only animates when the sketch updates it or reads an input that changes.

let ys = new Array();

function setup() {
  createCanvas(500, 200);
  for (let i = 0; i < 20; i++) {
    ys[i] = random(80, 120);
  }
}

There are two ways to make a value change over time: compute it from elapsed time with millis(), or update it by a fixed amount on each frame. The two agree only while the frame rate matches what the author imagined.

function setup() {
  createCanvas(500, 200);
}

function draw() {
  background(100);

  let seconds = millis() / 1000;
  let x = -20 + ((120 * seconds + 40) % (width + 40));
  circle(x, height / 2, 20);
}

let x = 20;

function setup() {
  createCanvas(500, 200);
}

function draw() {
  background(100);

  circle(x, height / 2, 20);
  x += 2;
  if (x > width + 20) {
    x -= width + 40;
  }
}

let x = 20;

function setup() {
  createCanvas(500, 200);
}

function draw() {
  background(100);

  circle(x, height / 2, 20);
  x += 0.12 * deltaTime;
  if (x > width + 20) {
    x -= width + 40;
  }
}

Per-frame increments are still the right tool when the next position should build on the last one, as in a random walk. Here each stored height drifts downward by a small random amount every frame; when a circle leaves the canvas, it starts again at the top.

let ys = new Array();

function setup() {
  createCanvas(windowWidth, windowHeight);
  for (let i = 0; i < 20; i++) {
    ys[i] = random(80, 120);
  }
}

function draw() {
  background(100);

  for (let i = 0; i < 20; i++) {
    let x = map(i, 0, 19, 20, width - 20);
    circle(x, ys[i], 20);
    ys[i] += random(1);
    if (ys[i] > height + 10) {
      ys[i] = 0;
    }
  }
}

At 60 frames per second, ys[i] += random(1) averages 30 pixels per second. If the browser draws fewer frames per second, the drift slows by the same proportion, because the step happens once per drawn frame. To state a speed in pixels per second, scale the step by elapsed time: ys[i] += 0.03 * deltaTime moves 30 pixels per second at any frame rate, because deltaTime is the milliseconds the previous frame took.

noise() offers a middle ground between random() and stored values. Nearby inputs produce nearby outputs, and calling it again with the same input returns the same value within the same field. (A new run of the sketch may use a new field.) Sampling the field along the row gives heights that differ from circle to circle yet relate to their neighbors, with no array and no flicker.

function draw() {
  background(100);

  for (let i = 0; i < 20; i++) {
    let x = map(i, 0, 19, 20, width - 20);
    let y = map(noise(i * 0.3), 0, 1, 80, 120);
    circle(x, y, 20);
  }
}

Add time as a second input and the sample point drifts through the field. Because millis() / 1000 changes little between frames, consecutive frames sample nearby points, so the motion is continuous.

function draw() {
  background(100);

  for (let i = 0; i < 20; i++) {
    let x = map(i, 0, 19, 20, width - 20);
    let y = map(noise(i * 0.3, millis() / 1000), 0, 1, 80, 120);
    circle(x, y, 20);
  }
}

The input scales set the character of the result. Increasing the 0.3 spaces the samples farther apart in the field, so neighboring circles relate less; increasing the 1000 slows the drift through time. Continuity holds only while the sample inputs stay nearby: a small change in input gives a small change in output, but a large jump in input can jump the output too.
